Skeleton annotation

Skeleton Annotations

The typical goal of skeleton annotations is the reconstruction of long-running structures in a dataset that span across many data slices as a graph of connected nodes. A typical example of creating skeleton annotations is the analysis of nerve cells placing a node every few slices to reconstruct their path through a dataset. (See image below)

A typical skeleton annotation contains the reconstruction of one or more structures, often with many thousand nodes. All connected nodes form a tree or more generally speaking a graph.

Skeleton annotations can be downloaded, modified, imported using a human-readable XML-based file format called NML.

This article outlines commonly used features and operations for viewing, editing, or creating new skeleton annotations in webKnossos.

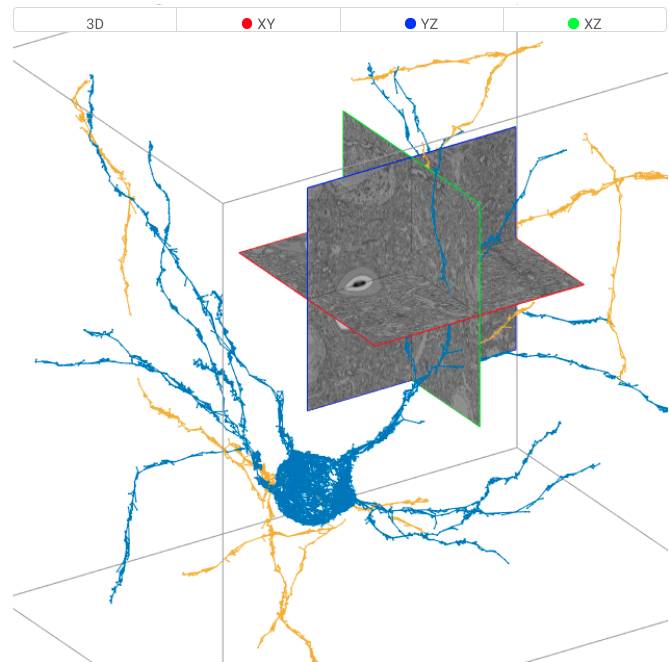

An example of a complex webKnossos skeleton annotation

Annotation Modes

webKnossos supports several modes for displaying your dataset & interacting with skeleton annotations.

Orthogonal Mode

Orthogonal mode displays a dataset with the camera oriented orthogonally to each of the three main axis x, y, z. Additionally, a fourth viewport shows the data and skeletons from a 3D perspective. All camera movements happen along the respective main axis. This view is especially useful for viewing your data in the highest possible quality alongside its main imaging axis, typically XY. Every single slice of the raw data can be viewed.

Most skeleton annotation operations and keyboard shortcuts are tailored for the Orthogonal Mode.

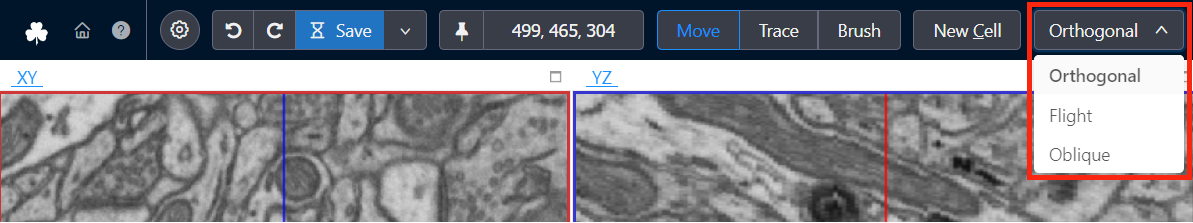

Switch between different annotation modes using the buttons in the toolbar

Oblique Mode

Oblique mode presents an arbitrarily-resliced view through the data. In contrast to Orthogonal mode, any arbitrary slice through the dataset at any rotational angle of the camera is possible.

Flight Mode

Flight mode also allows a resliced view through the data. In contrast to Oblique mode, the data is projected on the inside of a sphere with the camera located at the center of the sphere.

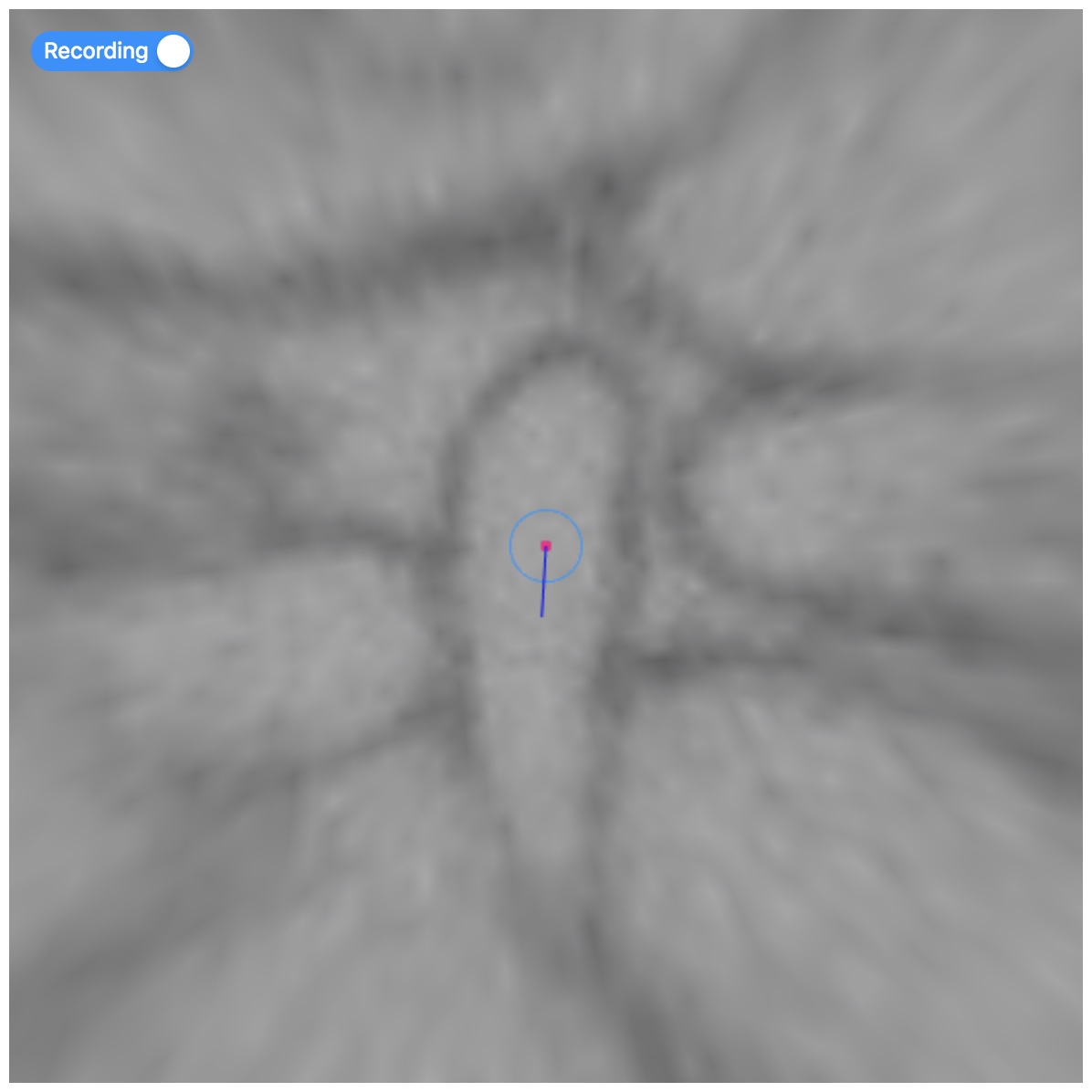

Annotate neurons efficiently in Flight mode

Spherical projection is especially useful when rotating the camera, as pixels close to the center of the screen move in a predictable manner. Interactions and movements in Flight mode feel similar to First-Person-View (FPV) games.

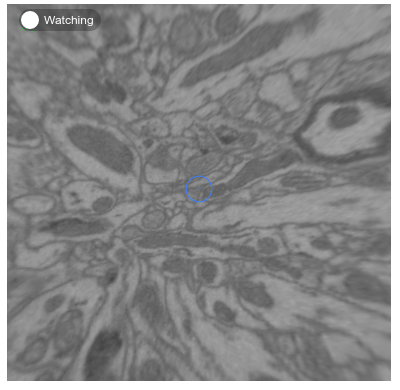

Spherical projection of the Flight mode Seamless rotation and navigation in the Flight mode

Changing the radius of the spherical projection

Flight mode is best used for annotating structures very quickly. Trained tracers can follow "tube"-like structures as though they are "flying" through them. Nodes are placed automatically along the flight path, creating skeleton very efficiently.

Nodes and Trees

Skeleton annotations consist of connected nodes forming a graph. Nodes are connected through edges and are organized in trees.

Nodes can be placed by clicking (Left Click by default or Right Click when Classic Controls are enabled in the settings sidebar) in orthogonal mode (the skeleton tool should be selected) or automatically when moving in flight or oblique mode. All (global) operations are executed on the current active node, e.g. adding a comment or node deletion. Most keyboard shortcuts take the active node into context. Operations on whole trees, e.g. splitting or merging trees, follow the same pattern.

Skeleton annotations can contain one or many trees consisting of several nodes all the way to millions of nodes. Users can add comments to each node to mark important positions or easily select them from a list of comments for later usage. Comments are organized in the Comments tab on the right-hand side of the screen. The Tree Viewer tab on the right-hand side menu displays a 2D simplified tree representation of the currently active tree.

Many organic structures do not follow a single, linear path but split into several individual branches instead. webKnossos natively supports branch points. Any node can be marked as a branch point using the keyboard shortcut "B". Branch points are highlighted using a slightly different color. All branch points are saved as a stack for each tree and can be accessed first-in, first-out (FIFO). Press the "J" to jump to the latest branch point to continue working from there and remove it from the stack.

Key Binding Operation
Left Click Create New Node
Left Click Select Node (Mark as Active Node) if one was hovered
Left Drag Move around
Left Drag Move node if one was hovered
S Center Camera on Active Node
DEL Delete Active Node
B Create Branch Point
J Jump to Last Branch Point
C Create New Tree

Note that you can enable Classic Controls which will behave slightly different and more explicit for some mouse actions:

Key Binding Operation
Left Drag Move around
Right Click Create New Node
SHIFT + Left Click Select Node (Mark as Active Node)
Left Drag Move node if one was hovered (unless Classic Controls are enabled)

All further keyboard shortcuts are available here.

Tree Operations & Tree Groups

All operations and information regarding trees are organized under a tab called Trees on the right-hand side of the screen.

A typical skeleton annotation consists of one or more trees. Trees can be nested and organized in so-called Tree Groups. Tree groups can have a name and are used to structure and label your annotation even further. Trees can be dragged and dropped between tree groups. This action can be applied to multiple trees by selecting them with Ctrl + Left Mouse (on Mac OS Cmd + Left Mouse). Hover over existing tree groups to bring up a little menu for creating new groups and deletion. It also has options to expand and collapse all subgroups. Renaming of a group can be done by selecting a group and then entering the new name into the input above the tree hierarchy structure view.

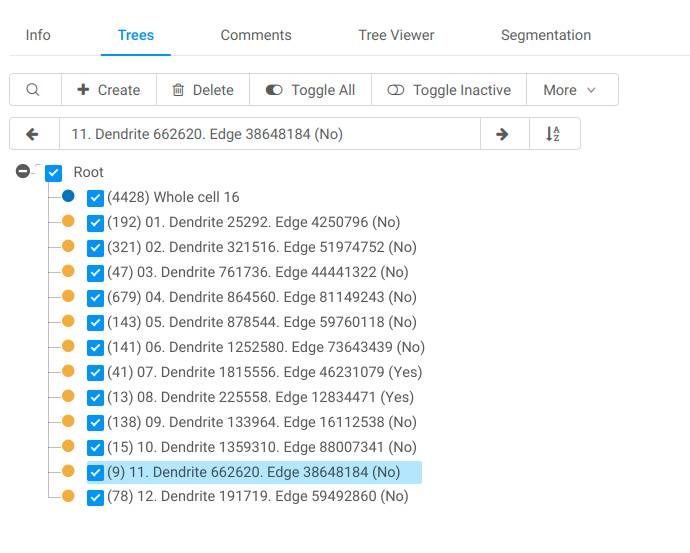

Organize your skeleton annotation's trees to remember important structures for later reference

Merging / Splitting Trees

Common tree operations include splitting and merging trees.

  • Tree splitting can be done in two ways:
  • Delete a node at which to split. This can be done by right-clicking a node and choosing "Delete this Node". If you have enabled Classic Controls, you need to select (SHIFT + Left Click) the node first and then delete (DEL) it.
  • Delete an edge between two nodes. Select the first node (Left Click), then right-click the second node and select Delete Edge to this Node. If you have enabled Classic Controls, you need to select the first node with Shift + Left Click and then click on the second node with SHIFT + CTRL + Left Click on the second node of the edge to delete this connection.
  • Tree merging works similarly to edge deletion but will create a new edge between two previously unconnected trees. Select the first node and right-click on a second one to choose Create Edge & Merge with this Tree. When using Classic Controls, the second node needs to be selected with SHIFT + ALT + Left Click to create an edge between the two.

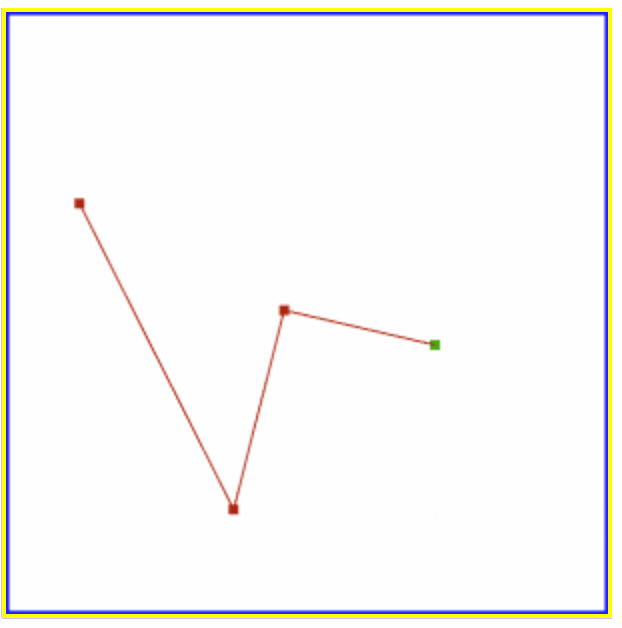

Trees can split by deleting the edge between two nodes or deleting a node. Two trees can be merged again by creating a new edge between them.

Tree Colors

A random color is assigned to each tree upon creation. Colors can be shuffled for a single tree or for all trees in a skeleton. Use the overflow menu under More in the tree tab and select Change Color or Shuffle All Colors to assign new randomly chosen colors. All node have the same color as their parent tree and can not be changed individually. The active node, branch points, and node that have comments assigned to them are highlighted with a slight variation of the tree's color.

Trees are randomly assigned colors upon creation.

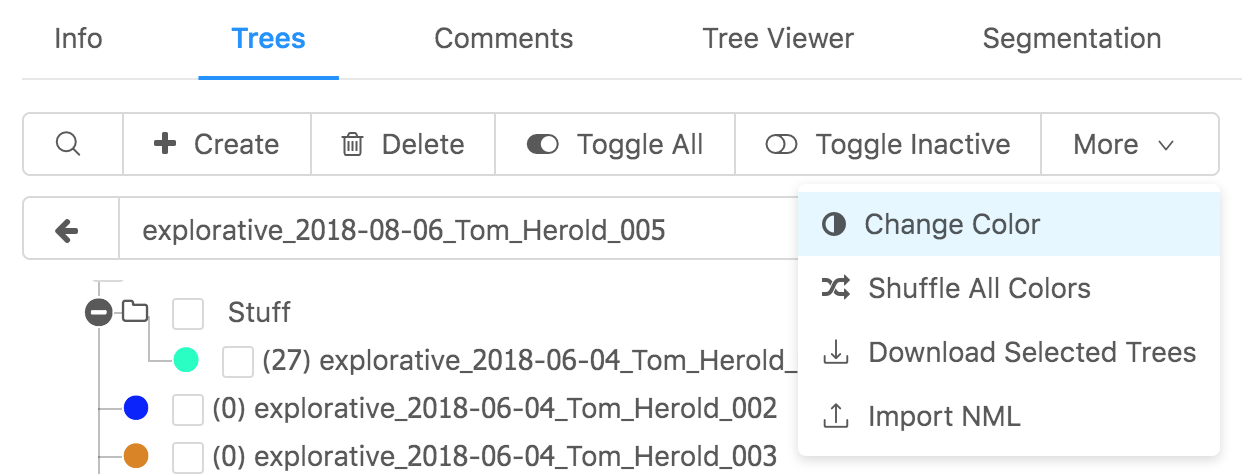

Users can assign new random colors to a single tree or all trees at once.

Tree Visibility

The visibility of individual trees can be toggled to hide some trees for a better overview. Toggle the checkbox before each tree name or tree group to hide/show it. Alternatively, the visibility of all trees can be toggled all at once using the Toggle All / Toggle Inactive button under the Tree Tab. There are also keyboard shortcuts to quickly toggle the visibility:

Key Binding Operation
1 Toggle Visibility of all Trees
2 Toggle Visibility of Inactive Trees

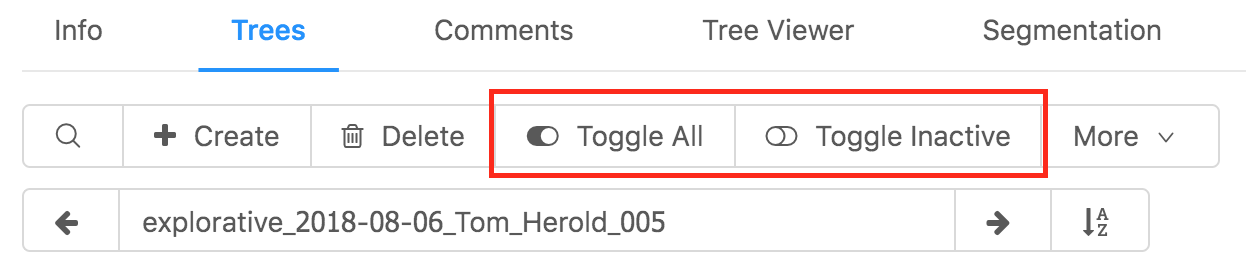

Trees can be hidden for a better overview over the data. Toggle the visibility of individual tree using the checkbox in front of the tree's name or use the button to toggle all (inactive) trees at once.

The Context Menu for Easy Access to Functionalities

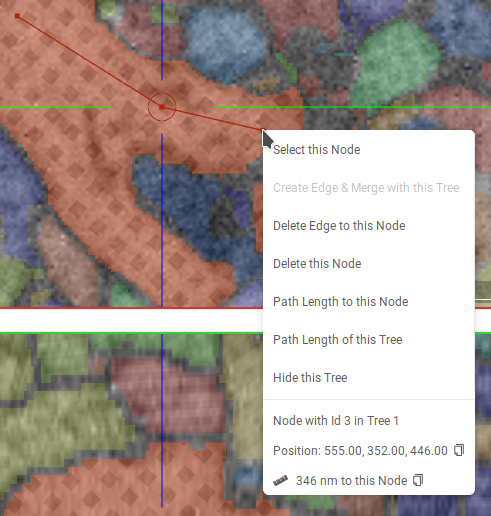

webKnossos also has a context menu which can be opened via Right Click (or Shift + Right Click if Classic Controls are enabled). This context menu takes the selected node into context and offers functionalities plus information to the user. Example of the context menu The context menu has two modes.

  • The first mode is active if the mouse was over a node when the user opened the context menu (like in the image above). In this case, the context menu offers additional information about the selected node and offers interactions with the active node. An example of possible interactions is to measure the path length of active node to the selected node. (This option is only available if both nodes are in the same tree).
  • The other mode is active if the user did not select a node with the context menu. In this mode there are no options available that require a selected node. Instead it offers the user to create a new tree or a new node at the selected position.

Importing & Exporting NML Files

webKnossos makes it easy to import or export skeleton annotations as NML files. There are two ways for downloading your annotations:

  1. There is a Download button in the overflow menu next to the prominent Save button in the toolbar at the top of the screen.

  2. If you need more fine-grained control over which trees to download use the Download Selected Trees option. From the Trees Tab click on More and select Download Selected Trees from the menu. All visible trees (checkmark in front of the name) will be downloaded as an NML file. This is especially useful if you need to only download a single tree of an otherwise much larger annotation.

Skeletons can be exported and downloaded as NML files from the annotation view. Either download all or only selected trees.

Importing a skeleton annotation can be achieved using two approaches as well:

  1. If you already have an annotation open you can easily add more skeletons to it by drag and dropping an NML file onto your browser window. Otherwise, use the Import NML option next to Download Selected Trees. This will merge the NML file's content with the already open annotation.

  2. To import a skeleton annotation as a completely new webKnossos annotation, just drag and drop the NML file anywhere on your user dashboard. Alternately, navigate to your user dashboard and use the Upload Annotation button within the "Explorative Annotations" section.

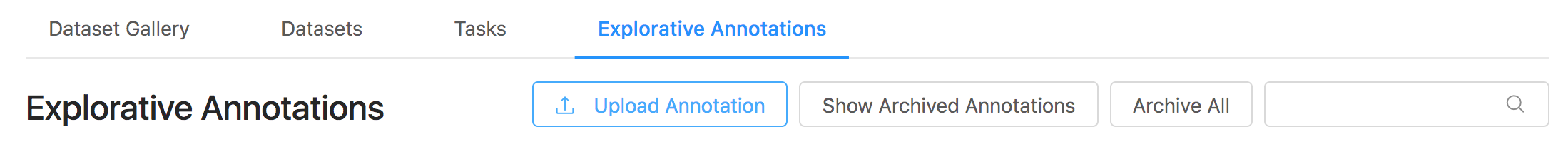

Skeletons can be imported by drag and drop in the annotation view or from the dashboard

Merging Skeleton Annotations

There are two ways for merging annotations:

  1. While in the annotation UI, drag and drop an NML file onto your browser window to import a skeleton. The imported skeleton will be merged with currently open annotation.

  2. If you would like to merge your current annotation with another existing annotation, select the Merge operation from the overflow menu next to the Save button. (see image) Either enter the ID of an existing explorative annotation or select a whole project and proceed to merge the selection with your currently open annotation. The resulting annotation can either be created as a new explorative annotation. Otherwise, the merge will happen in your current annotation.

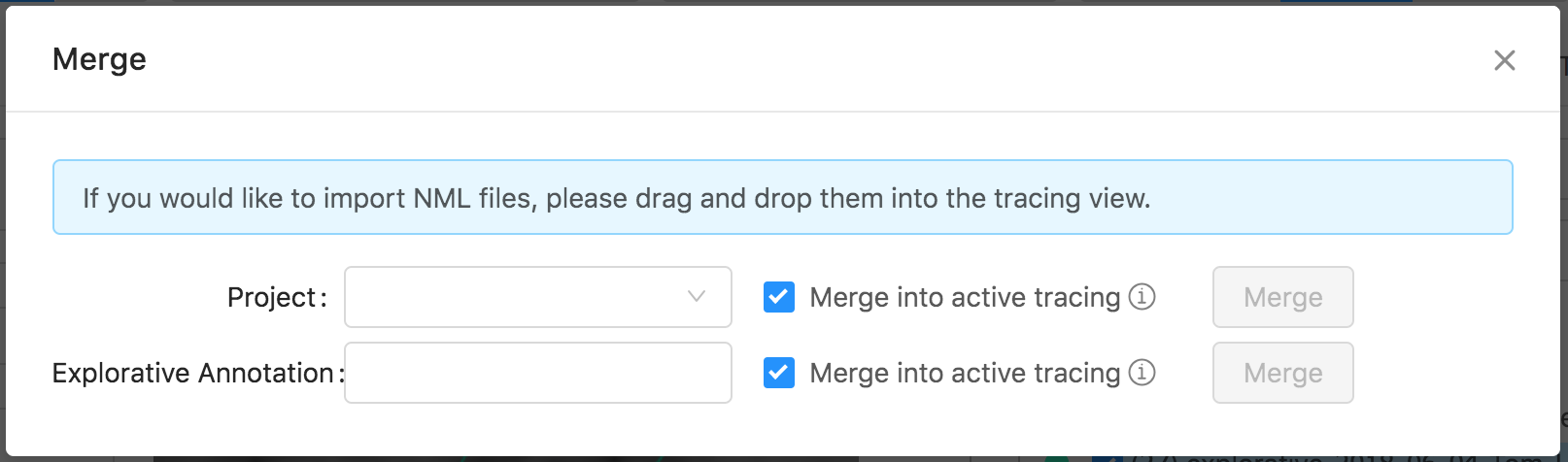

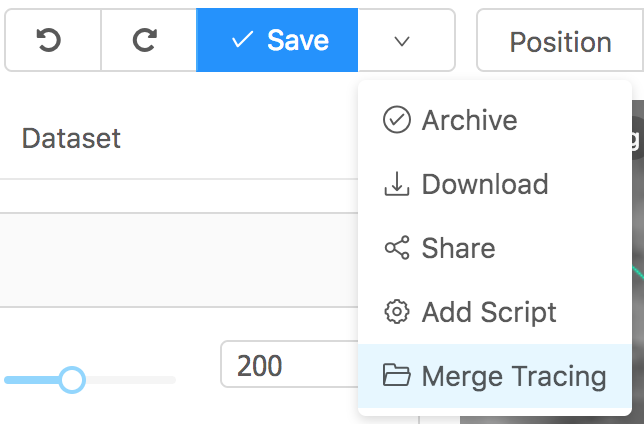

1. Select the Merge operation from the menu 2. Merging can be done with a whole webKnossos project or using the ID of an existing explorative annotation
